Piston Manufacturing Industry Depends
on Chevalier’s Smart Technology

A shortage of manpower and Industry 4.0 are two forces these days driving piston manufacturing to increasingly adopt Chevalier’s smart, automated technology.

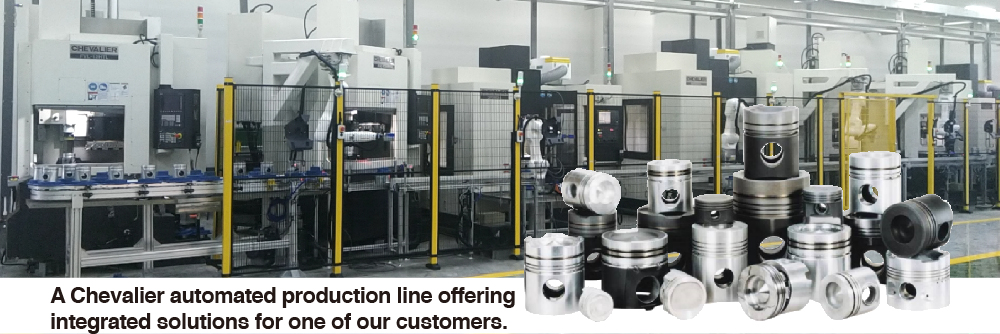

Chevalier’s intelligent automated production line meets our customers’ needs by facilitating the production with custom-made jigs and fixtures for a piston manufacturing segment requiring a high level of accuracy. Our comprehensive, integrated automation solution includes tool life management, preventive maintenance and machine utilization statistics. A complete production history can be recorded to help customers improve production efficiency and yield and reduce labor costs and human error.

Chevalier’s experienced automation plan can fully meet customers’ needs for smart automated production.

The automotive industry’s requirements for 24/7 automated production lines are increasing due to advancements in efficiency and quality. The extreme stability requirements of the entire production line, which include tooling, fixtures and automation equipment, are essential for the manufacturing of high- quality products. Chevalier machines meet the automotive industry’s Cpk 1.67 requirement.

In addition to manufacturing high-quality machine equipment, Chevalier has an experienced automation planning and design team that:
• plans process routes according to customer drawings
• implements custom workflow
• provides tailor-made professional fixture design
• combines automation and data collection capabilities

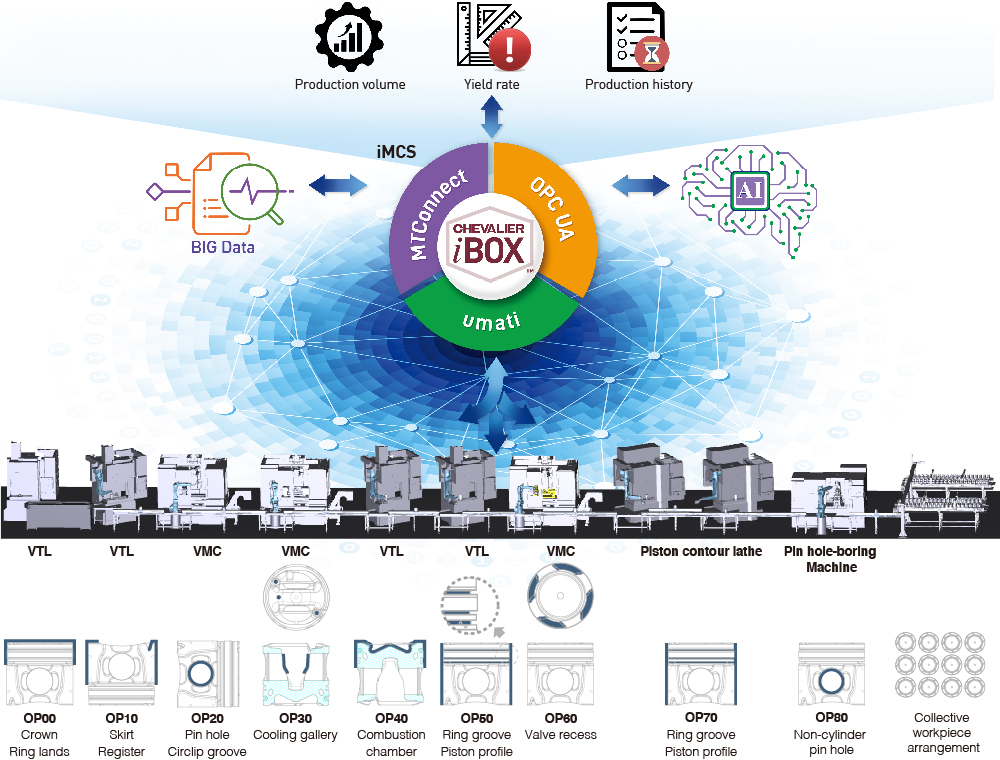

Our planners and designers integrate iMCS^TM software technology procedures, including:
• staffing and logging in
• inbound processing and inspection of workpieces
• complete recording of production history
• monitoring tool life and machine status
• providing planned preventive maintenance

iMCS software technology enables our customers to use smart mobile device anytime, from anywhere, to remotely monitor the status of the production line to fully meet all their needs.

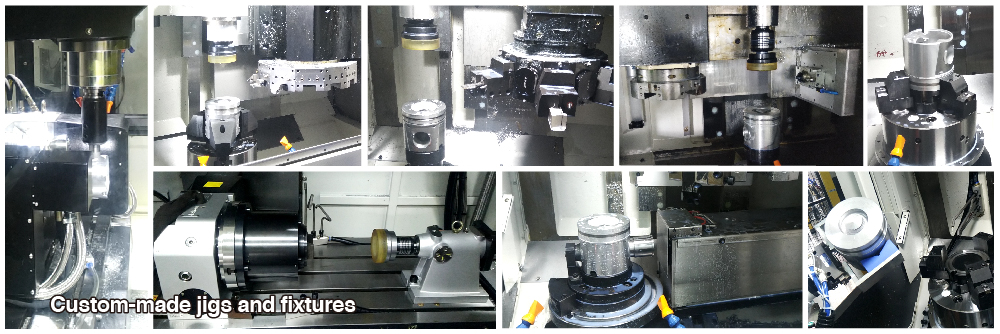

Custom-made jigs and fixtures

To meet the piston production needs in each phase, various fixtures, planning and design are implemented to achieve the best solution and workpiece accuracy.

Crucial machining for piston production lines

X- and Z-axis steel-inlaid guideways, designed without a tapered wedge, enable permanent wear-resistant processing technology and ensure long-term stability and high precision.
High-response, high-precision linear servo motor tool post system and the machining parameters can be adjusted in response to the machining requirements of various pistons with special-shaped outer surface, elliptical hyperbolas and more.

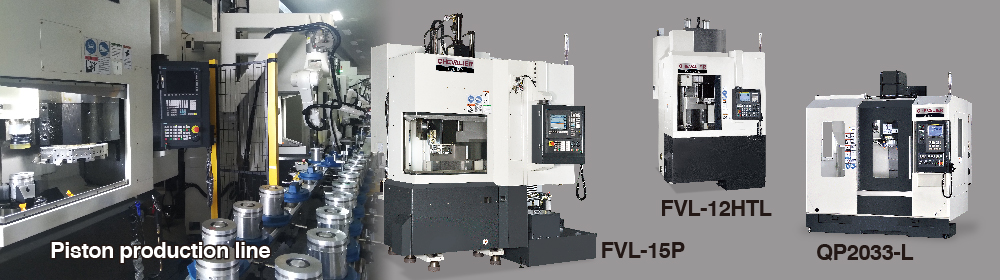

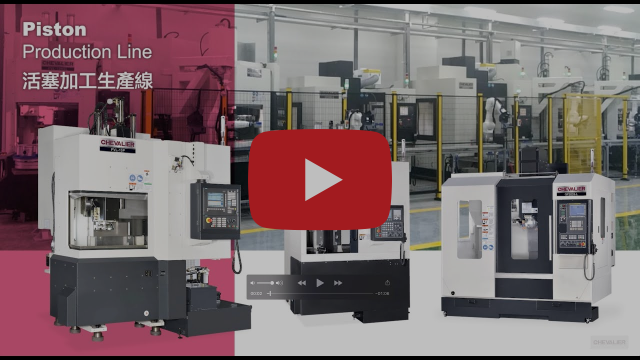

The entire production line is composed of: FVL-15P vertical lathe for non-circular contouring, FVL-12HTL vertical lathe, QP2033-L machining center. Integrated with iMCS remote monitoring system, it can reach the milestone of intelligent automated production.

Piston Machining Video

For more information on industrial technical solutions, please email overseas@chevalier.com.tw

TMTS Virtual Taiwan International Machine Tool Show Digital Exhibition
Nov. 10-30, 2020

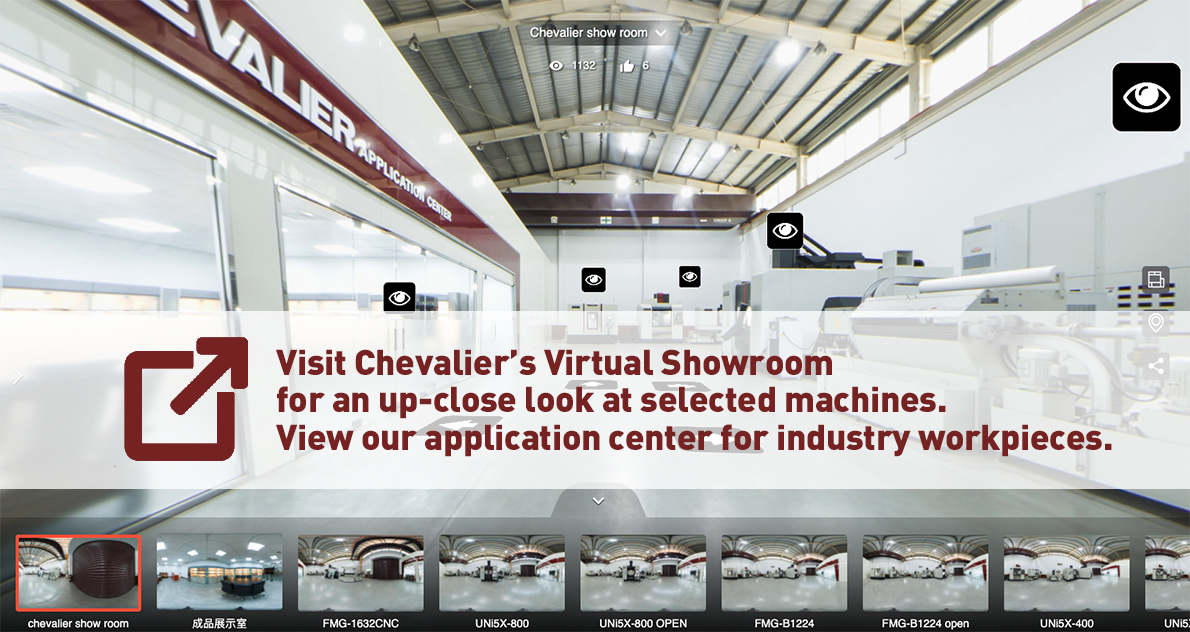

Visit our Virtual Showroom for an up-close look at several Chevalier CNC grinding, turning and milling machines. Select machine information for an overview on features, benefits, videos and literature. Then step into the application center to view industry workpieces.
