5-Axis Vertical Machining Center

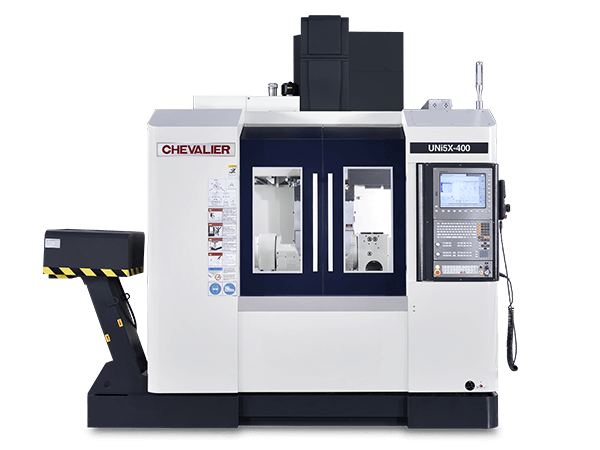

The UNi5X-400 five-axis vertical machining center can provide the required stability, speed and accuracy when machining complex workpieces. The machine’s high rigidity achieves the best stability, and the BIG-PLUS® double-sided restraint spindle design can achieve excellent speed and accuracy.
This VMC machine type can be widely used in aerospace, automotive, medical treatment, mold, pneumatic and hydraulic components, electronics, semiconductor, and job shop industries. Our exclusive iMachine Communications System™ (iMCS) software includes remote machine monitoring, data analysis, alarm history and maintenance updates to improve overall equipment efficiency (OEE) and is the equipment required for the construction of smart factories.
| Item | Description | UNi5X-400 |
|---|---|---|
| Capacity | Table size | Ø320 mm (Ø12.6") |
| Workpiece dimensions | Ø400 x H350 mm (Ø15.7” x H13.8”) | |
| Max. table load | 100 kg (220 lbs.) | |
| Travel | X-travel | 750 mm (29.5") |
| Y-travel | 610 mm (24.0”) | |
| Z-travel | 550 mm (21.7”) | |
| Feed rates | Rapid traverse (X/Y/Z) | 36/36/30 m/min (1,417/1,417/1,181 ipm) |
| Cutting feed (X/Y/Z) | 10/10/10 m/min (394/394/394 ipm) | |
| Accuracy | VDI 3441 positioning accuracy (X/Y/Z) | 0.010 mm (0.0004") |
| VDI 3441 repeatability accuracy (X/Y/Z) | 0.007 mm (0.0003”) | |
| A-axis positioning | 12 sec. | |
| C-axis positioning (while with optional angle encoder) |
20 (12) sec. | |
| A-axis repeatability | 5 sec. | |
| C-axis repeatability (while with optional angle encoder) |
10 (4) sec. | |
| A/C-axis | A-axis (tilting) | 150° (+30°/-120°) |
| C-axis (rotating) | 360° | |
| Revolutions per minute | 25 rpm | |
| Spindle | Spindle taper | BBT40 |
| Spindle power | Fanuc: 11/15 kW Siemens: 11 kW Heidenhain: 10 kW |
|
| Spindle speed | Direct drive: 10,000 rpm, optional 12,000/15,000 rpm | |
| Pull stud | P40T-1 | |
| Spindle center to column | 685 mm (27.0”) | |
| Spindle nose to table surface | 20~570 mm (0.8” ~ 22.4”) | |
| Automatic tool changer | Tool storage capacity | 30+1 arm type ATC |
| Max. tool diameter with adjacent tool | 76 mm (3.0”) | |
| Max. tool diameter without adjacent tool | 150 mm (5.9”) | |
| Max. tool length | 300 mm (11.8”) | |
| Max. tool weight | 7 kg (15.4 lbs.) | |
| Power and air requirement | Power required | Fanuc: 25 kVA Siemens/Heidenhain: 29 kVA |
| Total air consumption | 6 kg/cm2 (86 psi) | |
| 200 NL/min (7 cfm) | ||
| Tank capacity | Coolant tank capacity | 570 L (150 gals.) |
| Machine dimensions | Floor space (W x D x H) | 2,450 x 2,287 x 3,150 mm (96.5" x 90.0" x 124.0") |
| Net weight | 7,050 kg (15,500 lbs.) |
