Fully Automatic Precision Surface Grinder

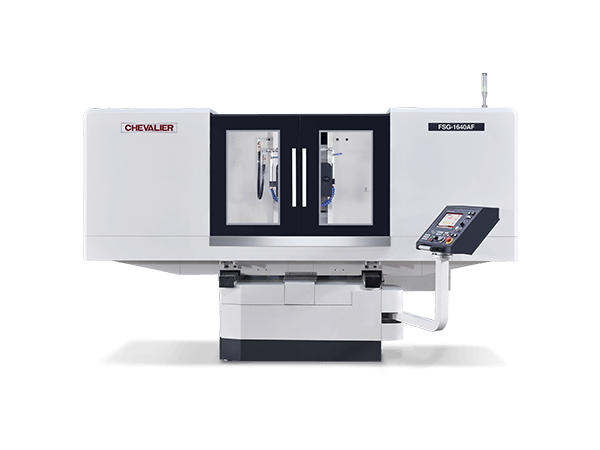

Chevalier's engineers developed the fully-covered FSG-1224.1640AF Series of high precision surface grinders to meet regulations mandating worker safety and environmental protection.

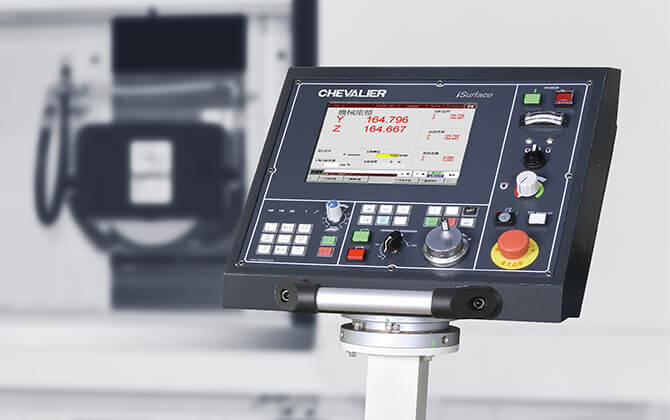

However, this does not come at the expense of efficiency and productivity. All AF Series surface grinders include built-in functions designed to shorten your processing and non-processing preparation while delivering high-precision workpieces year after year—functions you might not expect on such affordable machines: iSurface control, variable speed spindle, constant surface speed, loading detection and in-machine manual dynamic balancing.
AF Series high-precision grinders also meet the demands of Big Data with Chevalier's exclusive iMachine Communications System™ (iMCS). This software package, combined with data analysis, enhances machine efficiency in the factory while enabling remote monitoring and diagnostics to track machine performance and identify potential problems before they begin.
| Item | Description | FSG-1224AF |
|---|---|---|
| Control system | iSurface | |
| Capacity | Max. grinding length-longitudinal | 610 mm (24.0") |
| Max. grinding width-crosswise | 305 mm (12.0") | |
| Distance between table to spindle centerline | 600 mm (23.6") | |
| Height from table to ground | 975 mm (38.4") | |
| Max. table load | 420 kg (925 lbs.) | |
| Table | Table size | 300 x 600 mm (11.8" x 23.6") |
| Table speed (variable) | 5~25 m/min (16~82 fpm) | |
| Max. table travel | 700 mm (27.6") | |
| Transverse movement (Z) | Max. travel | 350 mm (13.8") |
| Feed speed | 0~2,250 mm/min (0~7.38 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 440 mm (17.3") |
| Feed speed | 0~675 mm/min (0~2.2 fpm) | |
| Spindle | Spindle speed | 500~2,000 rpm |
| Spindle motor | 5.5 kW (7.5 HP) | |
| Motors | Axis motors (Y/Z) | Y/Z: 1.1 kW |
| Hydraulic motor | 1 HP / 6 P | |
| Wheel dimension | OD x Width x Bore | Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5") |
| Machine dimensions | Floor space (W x D x H) | 2,710 x 2,428 x 2,200 mm (106.7" x 95.6" x 86.6") |
| Net weight | 3,500 kg (7,710 lbs.) |
| Item | Description | FSG-1640AF |
|---|---|---|
| Control system | iSurface | |
| Capacity | Max. grinding length-longitudinal | 1,015 mm (40.0") |
| Max. grinding width-crosswise | 405 mm (15.9") | |
| Distance between table to spindle centerline | 600 mm (23.6") | |
| Height from table to ground | 975 mm (38.4") | |
| Max. table load | 670 kg (1,475 lbs.) | |
| Table | Table size | 400 x 1,000 mm (15.7" x 39.4") |
| Table speed (variable) | 5~25 m/min (16~82 fpm) | |
| Max. table travel | 1,100 mm (43.3") | |
| Transverse movement (Z) | Max. travel | 450 mm (17.7") |
| Feed speed | 0~2,250 mm/min (0~7.38 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 440 mm (17.3") |
| Feed speed | 0~675 mm/min (0~2.2 fpm) | |
| Spindle | Spindle speed | 500~2,000 rpm |
| Spindle motor | 5.5 kW (7.5 HP) | |
| Motors | Axis motors (Y/Z) | Y/Z: 1.1 kW |
| Hydraulic motor | 2 HP / 6 P | |
| Wheel dimension | OD x Width x Bore | Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5") |
| Machine dimensions | Floor space (W x D x H) | 3,630 x 2,682 x 2,200 mm (142.9" x 105.6" x 86.6") |
| Net weight | 4,800 kg (10,580 lbs.) |
