Fully Automatic Precision Surface Grinder

FSG-1224ADIV ‧ FSG-1632ADIV ‧ FSG-1640ADIV

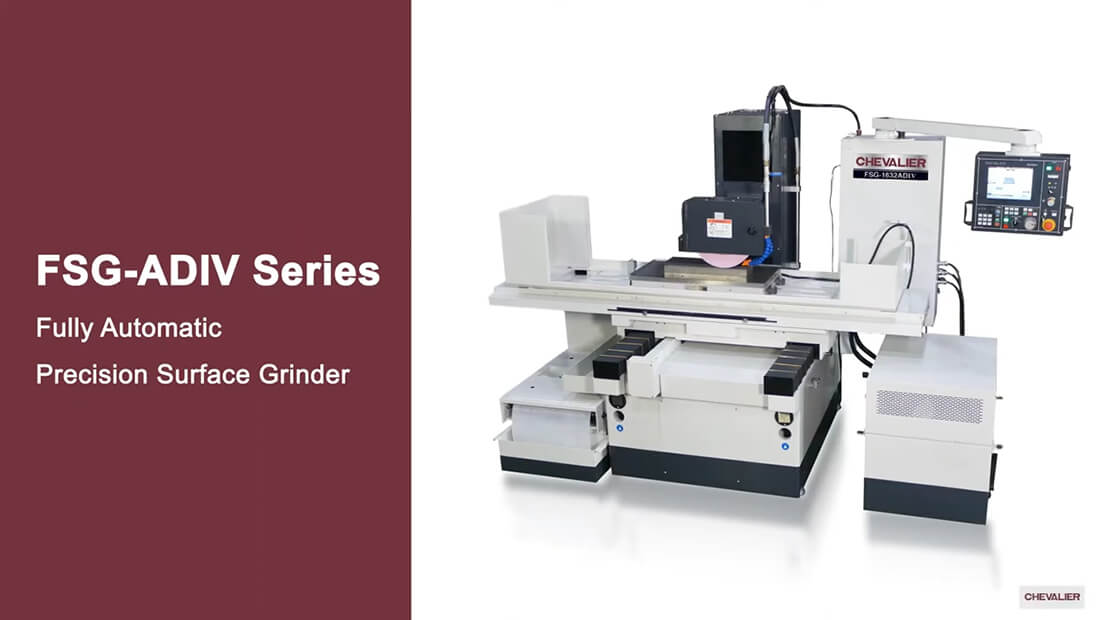

FSG-12/16ADIV Series Automatic Surface Grinding Machine
FSG-12/16ADIV Series Fully Automatic Surface Grinding Machine
Fully Automatic Precision Surface Grinder
Catalogue Download
Features
Fully Automatic Precision Surface Grinders

Chevalier's FSG-ADIV Series of automatic surface grinders have several design features to shorten your processing and non-processing preparation while delivering high-precision workpieces year after year—functions you might not expect on such affordable machines: iSurface control, variable speed spindle, constant surface speed, smart grinding path and in-machine manual dynamic balancing.

FSG-ADIV Series automatic grinders also feature tools to secure Big Data with Chevalier's exclusive iMachine Communications System TM (iMCS). This software package, combined with data analysis, enhances machine efficiency in the factory while enabling remote monitoring and diagnostics to track machine performance and identify potential problems before they begin.

Video
Specifications

Item Description FSG-1224ADIV
Control system   iSurface
Capacity Max. grinding length-longitudinal 610 mm (24.0")
Max. grinding width-crosswise 305 mm (12.0")
Distance between table to spindle centerline 610 mm (24.0")
Height from table to ground 970 mm (38.2")
Max. table load 230 kg (507 lbs.)
Table Table size 300 x 600 mm (11.8" x 23.6")
Table speed (variable) 5~25 m/min (16~82 fpm)
Max. table travel Hydraulic 650 mm (25.6")
Transverse movement (Z) Max. travel 350 mm (13.8")
Feed speed 0~2,250 mm/min (0~7.38 fpm)
Wheelhead elevation (Y) Max. travel 480 mm (18.9")
Feed speed 0~675 mm/min (0~2.2 fpm)
Spindle Spindle speed 500~1,800 rpm
Spindle motor 3.75 kW, optional 5.5 kW (5 HP, optional 7.5 HP)
Motors Axis motors (Y/Z) Y/Z: 1.1 kW
Hydraulic motor 0.74 kW  (1 HP) / 6P
Wheel dimension OD x Width x Bore Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 2,950 x 1,920 x 2,100 mm (116.0" x 75.6" x 82.7")
Net weight 2,200 kg (4,850 lbs.)

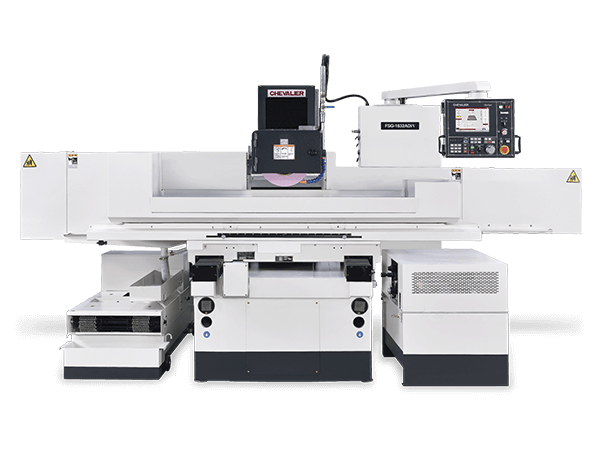

Item Description FSG-1632ADIV
Control system   iSurface
Capacity Max. grinding length-longitudinal 810 mm (31.9")
Max. grinding width-crosswise 405 mm (15.9")
Distance between table to spindle centerline 610 mm (24.0")
Height from table to ground 980 mm (38.6")
Max. table load 350 kg (772 lbs.)
Table Table size 400 x 800 mm (15.7" x 31.5")
Table speed (variable) 5~25 m/min (16~82 fpm)
Max. table travel Hydraulic 850 mm (33.5")
Transverse movement (Z) Max. travel 450 mm (17.7")
Feed speed 0~2,250 mm/min (0~7.38 fpm)
Wheelhead elevation (Y) Max. travel 480 mm (18.9")
Feed speed 0~675 mm/min (0~2.2 fpm)
Spindle Spindle speed 500~1,800 rpm
Spindle motor 3.75 kW, optional 5.5 kW (5 HP, optional 7.5 HP)
Motors Axis motors (Y/Z) Y/Z: 1.1 kW
Hydraulic motor 1.5 kW (2 HP) / 6P
Wheel dimension OD x Width x Bore Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 3,540 x 2,160 x 2,100 mm (139.4" x 85.0" x 82.7")
Net weight 2,900 kg (6,390 lbs.)

Item Description FSG-1640ADIV
Control system iSurface
Capacity Max. grinding length-longitudinal 1,015 mm (40.0")
Max. grinding width-crosswise 405 mm (15.9")
Distance between table to spindle centerline 610 mm (24.0")
Height from table to ground 980 mm (38.6")
Max. table load 440 kg (970 lbs.)
Table Table size 400 x 1,000 mm (15.7" x 39.4")
Table speed (variable) 5~25 m/min (16~82 fpm)
Max. table travel Hydraulic 1,050 mm (41.3")
Transverse movement (Z) Max. travel 450 mm (17.7")
Feed speed 0~2,250 mm/min (0~7.38 fpm)
Wheelhead elevation (Y) Max. travel 480 mm (18.9")
Feed speed 0~675 mm/min (0~2.2 fpm)
Spindle Spindle speed 500~1,800 rpm
Spindle motor 3.75 kW, optional 5.5 kW (5 HP, optional 7.5 HP)
Motors Axis motors (Y/Z) Y/Z: 1.1 kW
Hydraulic motor 1.5 kW (2 HP) / 6P
Wheel dimension OD x Width x Bore Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 4,280 x 2,160 x 2,100 mm (168.5" x 85.0" x 82.7")
Net weight 3,500 kg (7,710 lbs.)
