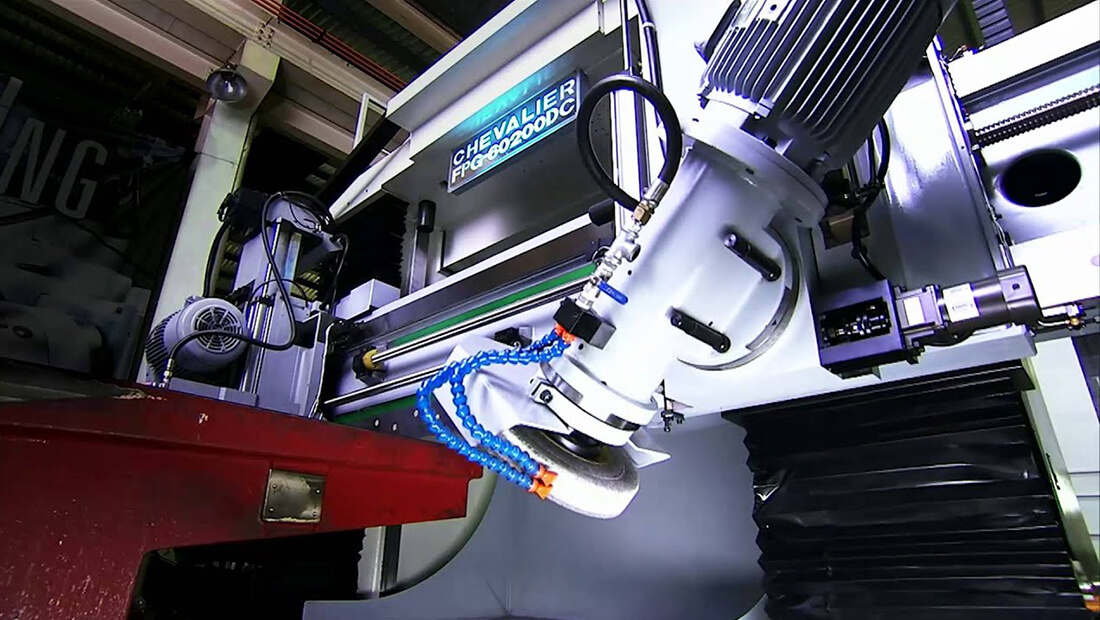

Double Column with Moving Beam CNC Grinder
Features
The easy to use interface, full CNC userfriendly control system, total workpiece capacity and the rigidity and accuracy of the dual column design offers impressive performance.
Chevalier's patented elevation guideways and spindle structure have four heavy-duty square slideways that provide maximum rigidity and heavy-duty grinding capacity. The spindle head on the Y-axis runs on four hardened, ground and wider guides traveling on Turcite-B anti-friction material. A worm gear reducer and servo motor coupled with a highaccuracy ballscrew and a pneumatic counterweight balance system ensures smooth movement and prevents the head from crashing in case of a power failure.
A high-precision, cartridge-type spindle is equipped with four Class 7 (P4) angular contact ball bearings and a set of NN- type, precision-needle roller bearings.
Video
Specifications
| Item | Description | FPG-60120DC |
|---|---|---|
| Control system | SMART iControl | |
| Table size | 1,500 x 3,000 mm (59" x 118") | |
| Max. grinding length | Longitudinal | 3,000 mm (118") |
| Max. grinding width | Crosswise | Horizontal head: 2,000 mm (78.7"), Vertical head: 1,500 mm (59") |
| Max. Dis form the centerline of Spindle to the table surface | Horizontal head | 1,450 mm (57") |
| Vertical Head | 1,050 mm (41") | |
| Max. table load capacity | 8,000 kg (17,600 lbs.) | |
| Distance between columns | 2,500 mm (98") | |
| X-axis | Table speed | 5~25 m/min (16~82 fpm) |
| Max. table stroke | 3,500 mm (137") | |
| Z/W-axis | Max. stroke (Z/W- axes) | 2,700 mm (106") |
| Feed speed | 0~5 m/min (0~16 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| U-axis | Max. feed stroke | 1,100 mm (43") |
| Y-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2 m/min (0~6.5 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| V-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2 m/min (0~6.5 fpm) | |
| Auto. feed | NC data input | |
| Spindle grinding drive | Speed | 500~2,000 rpm |
| Power rating | Horizontal head: 29.4 kW, optional 36.7 kW (40 HP, optional 50 HP), Vertical head: 14.7 kW, optional 22 kW (20 HP, optional 30 HP) |
|
| Wheel dimension | OD x Bore x Width | Horizontal head: Ø610 x 203 x 100 mm (Ø24" x 8" x 4"), Vertical head: Ø405 x 127 x 50 mm (Ø16" x 5" x 2") |
| Total rated power | 62.5 kW (85 HP) | |
| Net weight | 40,000 kg (88,000 lbs.) |
| Item | Description | FPG-60160DC |
|---|---|---|
| Control system | SMART iControl | |
| Table size | 1,500 x 4,000 mm (59" x 157") | |
| Max. grinding length | Longitudinal | 4,000 mm (157") |
| Max. grinding width | Crosswise | Horizontal head: 2,000 mm (78.7"), Vertical head: 1,500 mm (59") |
| Max. Dis form the centerline of Spindle to the table surface | Horizontal head | 1,450 mm (57") |
| Vertical Head | 1,050 mm (41") | |
| Max. table load capacity | 10,000 kg (22,000 lbs.) | |
| Distance between columns | 2,500 mm (98") | |
| X-axis | Table speed | 5~25 m/min (16~82 fpm) |
| Max. table stroke | 4,500 mm (177") | |
| Z/W-axis | Max. stroke (Z/W- axes) | 2,700 mm (106") |
| Feed speed | 0~5 m/min (0~16 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| U-axis | Max. feed stroke | 1,100 mm (43") |
| Y-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2 m/min (0~6.5 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| V-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2 m/min (0~6.5 fpm) | |
| Auto. feed | NC data input | |
| Spindle grinding drive | Speed | 500~2,000 rpm |
| Power rating | Horizontal head: 29.4 kW, optional 36.7 kW (40 HP, optional 50 HP), Vertical head: 14.7 kW, optional 22 kW (20 HP, optional 30 HP) |
|
| Wheel dimension | OD x Bore x Width | Horizontal head: Ø610 x 203 x 100 mm (Ø24" x 8" x 4"), Vertical head: Ø405 x 127 x 50 mm (Ø16" x 5" x 2") |
| Total rated power | 69.8 kW (95 HP) | |
| Net weight | 45,000 kg (99,000 lbs.) |
| Item | Description | FPG-60200DC |
|---|---|---|
| Control system | SMART iControl | |
| Table size | 1,500 x 5,000 mm (59" x 197") | |
| Max. grinding length | Longitudinal | 5,000 mm (197") |
| Max. grinding width | Crosswise | Horizontal head: 2,000 mm (78.7"), Vertical head: 1,500 mm (59") |
| Max. Dis form the centerline of Spindle to the table surface | Horizontal head | 1,450 mm (57") |
| Vertical Head | 1,050 mm (41") | |
| Max. table load capacity | 12,000 kg (26,400 lbs.) | |
| Distance between columns | 2,500 mm (98") | |
| X-axis | Table speed | 5~25 m/min (16~82 fpm) |
| Max. table stroke | 5,500 mm (216") | |
| Z/W-axis | Max. stroke (Z/W- axes) | 2,700 mm (106") |
| Feed speed | 0~5 m/min (0~16 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| U-axis | Max. feed stroke | 1,100 mm (43") |
| Y-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2 m/min (0~6.5 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| V-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2 m/min (0~6.5 fpm) | |
| Auto. feed | NC data input | |
| Spindle grinding drive | Speed | 500~2,000 rpm |
| Power rating | Horizontal head: 29.4 kW, optional 36.7 kW (40 HP, optional 50 HP), Vertical head: 14.7 kW, optional 22 kW (20 HP, optional 30 HP) |
|
| Wheel dimension | OD x Bore x Width | Horizontal head: Ø610 x 203 x 100 mm (Ø24" x 8" x 4"), Vertical head: Ø405 x 127 x 50 mm (Ø16" x 5" x 2") |
| Total rated power | 84.5 kW (115 HP) | |
| Net weight | 50,000 kg (110,000 lbs.) |
| Item | Description | FPG-100160DC |
|---|---|---|
| Control system | SMART iControl | |
| Table size | 2,500 x 4,000 mm (98" x 157") | |
| Max. grinding length | Longitudinal | 5,000 mm (197") |
| Max. grinding width | Crosswise | Horizontal head: 2,800 mm (110"), Vertical head: 2,500 mm (98") |
| Max. Dis form the centerline of Spindle to the table surface | Horizontal head | 1,750 mm (69") |
| Vertical Head | 1,350 mm (53") | |
| Max. table load capacity | 20,000 kg (44,000 lbs.) | |
| Distance between columns | 3,500 mm (138") | |
| X-axis | Table speed | 5~25m/min (16~82 fpm) |
| Max. table stroke | 4,500 mm (177") | |
| Z/W-axis | Max. stroke (Z/W- axes) | 3,700 mm (145") |
| Feed speed | 0~5m/min (0~16 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| U-axis | Max. feed stroke | 1,400 mm (55") |
| Y-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2m/min (0~6.5 fpm) | |
| Table longitudinal stroke setting | NC data input | |
| V-axis | Max. feed stroke | 400 mm (16") |
| Feed speed | 0~2m/min (0~6.5 fpm) | |
| Auto. feed | NC data input | |
| Spindle grinding drive | Speed | 500~2,000 rpm |
| Power rating | Horizontal head:29.4 kW, optional 36.7 kW (40 HP, optional 50 HP) Vertical head:14.7 kW, optional 22 kW (20 HP, optional 30 HP) |
|
| Wheel dimension | OD x Bore x Width | Horizontal head:Ø610 x 203 x 100 mm (24" x 8" x 4") Vertical head: Ø405 x 127 x 50 mm (16" x 5" x 2") |
| Total rated power | 69.8 kW (95 HP) | |
| Net weight | 75,000 kg (165,000 lbs.) |
All content is for reference only and may be subject to change without prior notice or obligation.

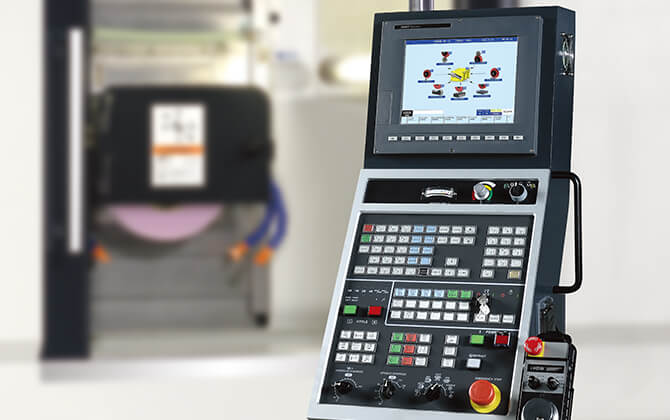

Control Introduction
